How to calculate heater efficiency from power use accurately
Calculate heater efficiency as heat out divided by electricity in; for resistive electric heaters it is usually near 100%, and anything above that suggests the input readings or temperature estimate may be off. Get it wrong and you pay more for electricity, size the heater poorly, and miss weak airflow, poor insulation, or a failing element. I use wattage, run time, kWh, and room temperature rise to estimate output, efficiency, and hourly cost.
What you’ll need before you start
- Heater wattage from the nameplate, or a plug-in power meter reading in watts
- Electric meter readings in kWh before and after the test
- Runtime in minutes or hours
- Room or object temperature before and after the run
- Mass of what was heated, if you are heating an object, water, or a known quantity of air
- Material type and its specific heat capacity
- Your electricity rate in dollars per kWh
- A way to convert watts to BTU per hour for HVAC comparison
How do watts turn into heat and cost?
Watts are power, not energy. Power is work per unit time in watts, and kilowatt-hours are the billing unit that captures power used over time. For a resistive electric heater, input power at the plug becomes heat at the point of use with very little conversion loss, so runtime, room losses, and measurement error are the main variables.
Core unit conversions
Convert watts to kilowatts before using hours: 1500 W = 1.5 kW. Then multiply by time to get energy in kWh. To compare with HVAC labels, convert watts to BTU per hour. A heater rated at 1500 W is about 5,100 BTU/h of input power, which is the electrical equivalent, not always the useful room heat.
Why point-of-use efficiency is different from whole-room results
An electric resistance heater is close to one-to-one at the point of use because the electrical input turns into heat. The room can still warm slowly if heat escapes through walls, windows, ducts, or ventilation. Thermal efficiency is the ratio of useful heat delivered to electrical energy in, and that ratio can look lower in a real room than at the element.

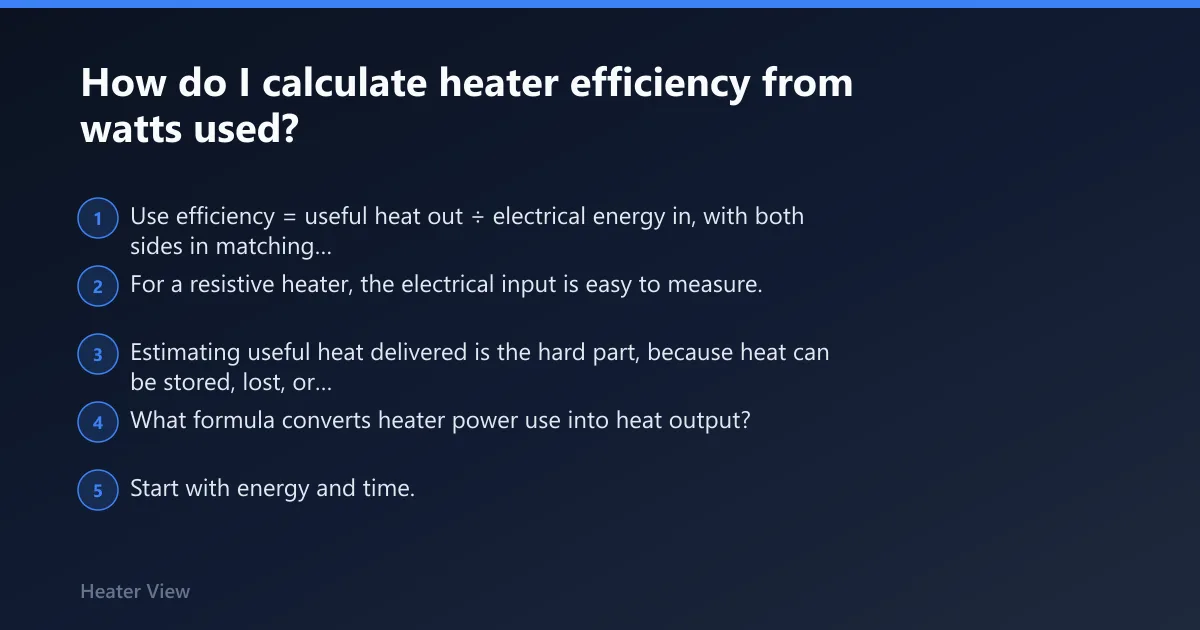

How do I calculate heater efficiency from watts used?
Use efficiency = useful heat out ÷ electrical energy in, with both sides in matching units over the same time period. For a resistive heater, the electrical input is easy to measure. Estimating useful heat delivered is the hard part, because heat can be stored, lost, or moved away while the heater runs.
What formula converts heater power use into heat output?
Start with energy and time. The calculator relation is c = Q / (m × ΔT), which can also be written as Q = m × c × ΔT. Heat energy is converted into power with W˙ = Q / Δt. The page also defines specific heat at constant pressure and constant volume, includes air as a selectable substance, and includes water at 25 °C as an input material.
How do I compare heater efficiency when the output is in BTU and input is in watts?
Convert both sides to energy over the same interval. Electrical input in kWh can be turned into BTU, or useful heat in joules can be turned into watt-hours and then compared with the meter reading. For HVAC comparison, BTU per hour is the common output unit. A watt is about 3.4 BTU/h, so the conversion is direct.
Step 1: Record the input energy
- Read the meter before the test.
- Run the heater for a known time.
- Read the meter again and subtract the first reading.
- Check whether fan-only draw, standby draw, or another load was included.
If a plug meter is available, use its kWh register. If only wattage is known, multiply the heater’s kW by runtime in hours. A 1500 W heater running for 2 hours uses about 3 kWh before cycling or losses are considered. That number is useful for cost, and it is the cleanest starting point for efficiency work.
How do I estimate cost per hour from heater wattage?
Use cost per hour = kW × electricity rate. A 1500 W heater draws 1.5 kW. At 20 cents per kWh, the hourly cost is about 30 cents if it runs continuously. If a thermostat cycles it on about half the time, average cost drops to around 15 cents per hour, though the room may still stay warm if losses are modest.
Step 2: Estimate the useful heat delivered
Measure the temperature change, ΔT, and pair it with mass and specific heat capacity. Specific heat is a material property in J/kg·°C or J/kg·K, and it changes the required energy a lot. Air has a low heat capacity compared with water, so a room air temperature rise alone can understate the total energy stored in furniture, walls, and the air itself.
How many watts does a heater need to raise room temperature?
There is no single watt figure that fits every room. The required power depends on the mass being heated, its specific heat, the temperature rise, the time interval, and how fast heat leaks out. For a measured object, use Q = m × c × ΔT and then divide by time. For a whole room, treat the result as an estimate, not a lab-grade value.
Worked example worksheet
| Item | Value | Notes |
|---|---|---|
| Meter reading before | 12.40 kWh | Starting value from the plug meter |
| Meter reading after | 15.40 kWh | Ending value after the test |
| Electrical energy in | 3.00 kWh | Difference between readings |
| Heater wattage | 1500 W | Nameplate rating |
| Runtime | 2.0 hours | Continuous test window |
| Room temperature change | 18 °C to 21 °C | ΔT = 3 °C |
| Estimated useful heat | About 2500 BTU | Assumes 1.3 kg of air plus some room surfaces, not just air alone |
| Final efficiency range | 70% to 100% | Range reflects room losses and uncertainty in the thermal mass estimate |
In this worksheet, 3.00 kWh of electricity in equals about 10,000 BTU of input energy over the full run. If the room and nearby surfaces absorbed about 2500 BTU of useful heat during the measured interval, the apparent efficiency is about 24%. That does not mean the element is weak; it means the room leaked a lot of heat or the mass estimate was too small.
Step 3: Calculate efficiency and heat output
Convert the useful heat estimate into the same unit as the input, then divide. Efficiency = useful heat out ÷ electrical energy in. If you only have room air temperature rise, the result is usually a lower-bound estimate because walls, floors, furniture, and airflow are part of the thermal load but rarely measured directly.
How do I compare heater efficiency from real meter readings?
Use the meter kWh, then convert that number to BTU if needed. One kWh is about 3,400 BTU. Compare that input against the estimated heat absorbed by the room or object. If the heater is a resistive electric unit, the estimate should usually land near 100% at the element, while the room-level figure may sit lower because of heat loss during the test.
Does a 1500-watt heater mean 100% efficiency?
No. It means the heater can draw up to 1500 W of electrical power. That does not prove that every watt became useful room heat during your test. Short cycling, fan-only operation, thermostat overshoot, and heat escaping through the shell or room boundaries can make the measured room result differ from the nameplate number.
What measurements do I need to estimate heater efficiency from electricity use?
You need a starting kWh reading, an ending kWh reading, the runtime, and a temperature change. For object heating, you also need mass and specific heat capacity. For room heating, you need a clear note about what was inside the test space, because air alone is only part of the load and the mass of the room matters a lot.
Checklist before the test
- Record the heater setting and whether the fan runs continuously
- Close doors and windows if you want a tighter estimate
- Note indoor and outdoor temperature
- Log meter readings at the start and end
- Measure the warm-up period and total runtime separately
- Write down any other heat sources in the room
What is the difference between power and heat in heater calculations?
Power is the rate of energy use, and heat is energy moved into something else. A watt is a joule per second. A heater can draw 1500 W for one hour, which is 1.5 kWh of energy use, but the useful heat delivered to a room depends on how much of that energy stays in the space and for how long.
Common mistakes when estimating heater efficiency
Using nameplate watts as useful heat by default is the biggest mistake. Mixing Fahrenheit and Celsius differences is another; ΔT is a temperature change, so the size of the degree is what matters, not the absolute scale. Short tests also mislead because the room, walls, and contents have not reached steady behavior yet.
Another common error is ignoring thermostat cycling. If the heater cuts on and off, the average power over the test may be much lower than the rated wattage. Fan-only draw can also make the meter reading look like heat when it is mostly air movement. Heat lost through walls, vents, and open gaps should be expected in any real room test.
If that didn’t work, try this next
- Extend the test window to at least one full thermostat cycle.
- Measure the room’s steady-state temperature, not just the first warm-up rise.
- Repeat the test with doors, windows, and supply vents in the same position.
- Subtract known non-heating loads from the meter reading if the plug meter shows them separately.
Prevention: keep a running log of heater kWh and indoor temperature for a few cold days. That makes it easier to spot drift, cycling changes, or a failing element before comfort drops.
Frequently asked questions
How do I calculate heater efficiency from watts used?
Measure electrical input in kWh over a known runtime, estimate useful heat delivered in the same interval, then divide output by input. For a resistive heater, the answer should usually be near 100% at the element, while a room-level estimate can be lower because the room loses heat during the test.
What formula converts heater power use into heat output?
Use Q = m × c × ΔT for the heat absorbed by a known mass, then divide by time if you want power. The source relation is c = Q / (m × ΔT), and heat energy can be converted into power with W˙ = Q / Δt. Keep units consistent throughout.
How many watts does a heater need to raise room temperature?
It depends on the room mass, insulation, air leakage, and how fast you want the rise. A small, sealed room needs far less power than a leaky one. Use the measured ΔT, the mass being heated, and the elapsed time to estimate required wattage rather than relying on one fixed number.
How do I compare heater efficiency when the output is in BTU and input is in watts?
Convert watts to BTU per hour using 1 W ≈ 3.412 BTU/h, or convert BTU to joules before comparing. Then divide useful heat out by electrical energy in. That keeps the ratio honest when one side is a HVAC label and the other is a power meter reading.
Does a 1500-watt heater mean 100% efficiency?
It means the heater can draw up to 1500 W. It does not prove the room got 1500 W of useful heat. Electric resistance heaters are near one-to-one at the point of use, but the room result depends on runtime, cycling, fan draw, and how much heat escaped during the test.
What measurements do I need to estimate heater efficiency from electricity use?
At minimum: starting and ending kWh, runtime, and room or object temperature before and after. For objects, add mass and specific heat capacity. For a room, note doors, vents, windows, and other heat sources so you can judge how much of the electrical input stayed in the test space.
